Canon IRADV-6255/65/75
Download
Open

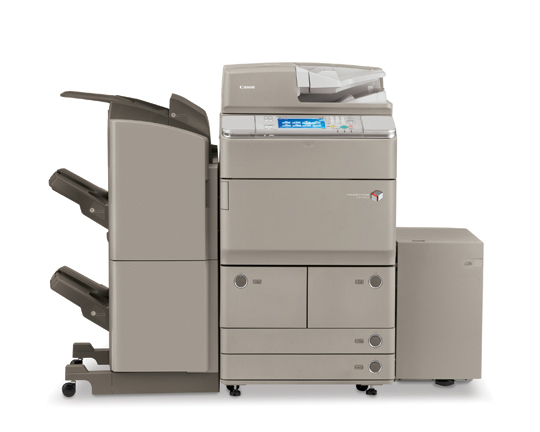

| Model Name | imageRUNNER ADVANCE 6255 |
| Type | Monochrome Digital Multifunction Imaging System Letter: Up to 55 ppm Legal/11" x 17": Up to 39/32 ppm |
| Functions | Standard: Copy, Print (UFR II), Scan, Send, Store Optional: Print (PCL 5e/6, Adobe® PostScript® 3 ™), Fax (Up to 4 Lines) |
| Operation Panel | Standard: 8.4" SVGA Full-Color, TFT Screen Optional: 10.4" SVGA Full-Color, TFT Upright Screen |
| Image Server Memory | Standard: 1.5GB RAM Maximum: 2GB RAM |
| Hard Disk Drive | Standard: 160GB Maximum: 1TB |
| Mirroring Hard Disk Drive | Optional (160GB, 1TB), Method: RAID1 |
| Network Interface Connection | Standard: 10Base-T/100Base-TX/1000Base-T Optional: Wireless LAN (IEEE 802.1x via third-party adapter) |
| Other Interface | Standard: USB 2.0 (Host) x2, USB 2.0 (Device) Optional: Device Port [USB 2.0 (Host) x2], Serial Interface, Copy Control Interface |
| Max Mailboxes Supported | 100 User Inboxes, 1 Memory RX Inbox, 50 Confidential Fax Inboxes |
| Max Pages Stored | 20,000 Maximum Pages Stored |
| Advanced Box | |
| Available Disk Space | Approx. 15GB (Standard HDD) Approx. 629GB (1TB HDD) |
| Common Protocol | SMB or WebDAV |
| Supported Client PC | Windows (Windows 2000/XP/7/Windows Vista) |
| Max. Number of Concurrent Connections | SMB: 32, WebDAV: 12 (Active Sessions) |
| Advanced Box Features | Disabling Advanced Box, Storage Filtering, Authentication for Advanced Box Log-in, Search Function, Sort Function, Printing a PDF File with a Password, imageWARE Secure Audit Manager Support |
| Memory Media | |
| Standard | USB Memory |
| Optional | SD, SDHC, CompactFlash, Memory Stick, Microdrive |
| Scan Specifications | |
| Network TWAIN Scan | Standard |
| Network Scan Utility | Color Network ScanGear |
| First Copy Time | 3.3 Seconds or Less (Letter) |
| Standard Paper Capacity | (20 lb. Bond) Standard: Dual 1,500-sheet Paper Drawers, Dual 550-sheet Paper Cassettes, 100-sheet Stack Bypass |
| Optional | 3,500-sheet Paper Deck Unit-A1 or 3,500-sheet Paper Deck Unit-D1 |
| Maximum Paper Capacity | 7,700 Sheets (w/Paper Deck Unit Option) |
| Output Paper Capacity | (20 lb. Bond) Standard: 250 Sheets (w/Copy Tray) Maximum: 4,000 Sheets (w/Staple Finisher or Booklet Finisher) |
| Output Sizes | |
| Cassette | 11" x 17", Legal, Letter, Letter-R, Executive, Statement-R, Custom Size (5-1/2" x 7-1/8" to 11-3/4" x 19-1/4") |
| Bypass | 11" x 17", Legal, Letter, Letter-R, Executive, Statement-R, Custom Size (4" x 5-7/8" to 11-3/4" x 19-1/4") |
| Acceptable Paper Weights | |
| Cassette | 14 lb. Bond to 80 lb. Cover (52 to 220g/m2) |
| Bypass | 14 lb. Bond to 140 lb. Index (52 to 256g/m2) |
| Duplexing | |
| Paper Size | Standard Automatic Trayless Duplexing (Up to 11" x 17") |
| Paper Weight | 14 lb. Bond to 80 lb. Cover (52 to 220g/m2) |
| Special Media Support | Thin [14 lb. Bond to 16 lb. Bond (52 to 63g/m2)], Plain [17 lb. Bond to 24 lb. Bond (64 to 90g/m2)], Heavy 1 [25 lb. Bond to 66lb. Cover (91 to 180g/m2)], Heavy 2 [67 lb. Cover to 80 lb. Cover (181 to 220g/m2)], Heavy 3 [82 lb. Cover to 140 lb. Index (221 to 256g/m2)], Color, Recycled, Pre-Punched, Transparency, Tracing, Labels, Bond, Letterhead, Tab |
| Warm Up Time | From Power On: 30 Seconds or Less, From Sleep Mode: 30 Seconds or Less, Quick Startup Mode: 7 Seconds* |
| Power Requirements | 120-127V AC, 60Hz, 16A |
| Power Consumption | Maximum: 1.92kW Sleep Mode: 0.9W or Less |
| Plug | NEMA 5-20P |
| Dimension | Without the Upright Control Panel: 48" x 25-3/8" x 30-3/8" (1220mm x 645mm x 770mm) With the Upright Control Panel (To the right edge of the Upright Control Panel in the right-most position): 49-1/4" x 53-3/8" x 30-3/8" (1252mm x 1481mm x 770mm) |
| Installation Space | Without the Upright Control Panel: 53-5/8" x 30-3/8" (1362mm x 770mm) With the Upright Control Panel: 74-7/8" x 30-3/8" (1901mm x 770mm) |
| Weight | Approx. 516 lb. (234kg)** |
| Image Reader | |
| Scan Resolution | Up to 600 x 600 dpi |
| Acceptable Originals | (Glass): Sheet, Book, 3-Dimensional Objects [Up to 4.4 lb. (2kg)] |
| Maximum Original Size | Up to 11" x 17" |
| Basic Copy Features | First-Copy-Out Time (Letter): 3.3 Seconds or Less Multiple Copies: 1 to 9,999 Copy Exposure: Automatic or Manual (9 Levels) Magnification: 25% - 400% (1% Increments) Preset Reductions: 25%, 50%, 64%, 73%, 78% Preset Enlargements: 121%, 129%, 200%, 400% Basic Copy Features: Preset R/E Ratios by Area, Finishing, Two-Sided, Exposure Adjustment, Original Type Selection, Interrupt Mode, Sample Set, Setting Confirmation/Cancel, Standard Keys, Reset, Guide Display, Job Duration Display, Reserved Copying |
| Special Copy Features | Two-page Separation, Cover/Sheet Insertion, Booklet, Transparency Interleaving, Shift, Margin, Frame Erase, Image Combination, Different-size Original, Job Build, Job Done Notice, Scan Image Check, Mode Memory, Recall, Negative/Positive Inversion, Image Repeat, Mirror Image, Sharpness, Tab Paper Creation, Form Composition, Secure Watermark, Page Numbering, Copy Set Numbering, Watermark and Date, Job Block Combination, Store in User Inbox, Cascade Copy |
| Security Features | |
| Standard | Department ID Management, Single Sign-On H, Access Management System (Device and Function Level Log-in), Secure Print, Trusted Platform Module, User Access Control of Advanced Box, Mail Box Password Protection, IPv6, Restricting Features (Restricting the Send Function, Restricting New Addresses on Address Book), SSL Encrypted Communication, SNMPv1/v3, MAC/IP Address Filtering, SMTP Authentication, POP Authentication before SMTP, HDD Erase (Up to 3x), HDD Initialize (Up to 9x), HDD Lock, IPsec, Adobe LiveCycle® Rights Management ES2.5 Integration |
| Optional | Removable HDD, HDD Encryption, HDD Mirroring, Encrypted Secure Print, Encrypted PDF, Document Scan Lock, Secure Watermark, IEEE 2600.1 Common Criteria Certification † † |
