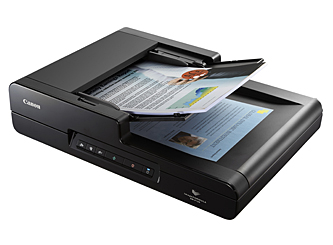

Canon imageFORMULA DR-F120



Type Desktop Type Flatbed Scanner with ADF
Scanning sensor unit CMOS CIS 1 Line Sensor
Optical resolution 600dpi/1200dpi
Light source RGB LED
Scanning side Front / Back / Duplex
Interface High speed USB 2.0
Dimensions (WxDxH) Tray Closed : 469 (W) x 335 (D) x 120 (H) mm
Tray Opened: 469 (W) x 335 (D) x 151 (H) mm
Weight Approx. 4.6kg
Power requirements AC220 - 240V (50/60Hz)
Power consumption Scanning 19.9W or less, Sleep Mode 2.5W or less, Power Turned Off less than 0.5W
Operating environment 10 - 32.5 °C (50 - 90.5 °F), Humidity: 20 - 80% RH
Environmental compliance RoHS and ENERGY STAR


Black and White (A4, 200dpi) ADF: 20ppm / 36ipm
Colour (A4, 200dpi) ADF: 10ppm / 18ipm
Output resolution 150 x 150dpi, 200 x 200dpi, 240 x 240dpi, 300 x 300dpi, 400 x 400dpi, 600 x 600dpi, 1200 x 1200dpi, 2400 x 2400dpi
Output mode Black & White, Error Diffusion, Advanced Text Enhancement, Advanced Text Enhancement II, 8-bit Greyscale (256-Level), 24-bit Colour
Suggested Daily Duty Cycle Approx 800 scans/day


Width ADF: 51 - 216mm
Flatbed: up to 216mm
Length ADF: 89 - 356mm
Flatbed: up to 356mm
Thickness ADF: 35 - 128g/m² (0.05 - 0.15mm)
Long document mode up to 1000mm
Card scanning Width: 51mm Length: 89mm Thickness 128 - 209g/m²
Paper separation Retard Roller Method
Feeder capacity 50 sheets (80g/m²)
