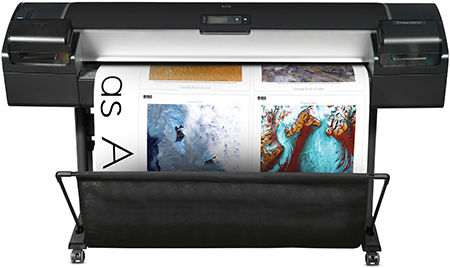

HP DesignJet Z5200 Photo Printer



Speed specifications
Print time color image ISO N5 (best, metric A1 glossy paper):
5.1 min/page
Print time color image ISO N5 (normal metric A1 glossy paper):
3.4 min/page
Print time color image ISO N5 (draft, A1 coated paper):
1.4 min/page
Print time color image ISO N5 (normal metric A1 coated paper):
2.6 min/page
Print speed
41 m²/hr
(Maximum rate of output for colour image 100% colour coverage (Bandes file). Printed in Fast mode, on HP Bright White Inkjet Paper (Bond), maximum roll size, with HP Vivid Photo Inks.)


Memory, standard:
  • 32 GB (virtual)
Hard disk:
  • Standard, 160 GB

Technical specifications


Print quality (best)
Color: Up to 2400 x 1200 optimized dpi
Black: Up to 2400 x 1200 optimized dpi
Print technology:
HP Thermal Inkjet
Number of print cartridges:
8 (cyan, magenta, yellow, light cyan, light grey, light magenta, matte black, photo black)
Compatible ink types:
  • Pigment-based
Non-printable area (cut-sheet):
5 mm (top), 5 mm (right), 5 mm (left), 17 mm (bottom)
Guaranteed minimum line width:
0.08 mm (ISO/IEC 13660:2001(E))
Line accuracy:
+/- 0.2% of the specified vector length or +/- 0.1 mm (whichever greater) at 23º C (73º F), 50-60% relative humidity, on A0/E HP Matte Film in Best or Normal mode
Color accuracy:
Median < 1.6 dE2000, 95% of colours < 2.8 dE2000
Color stability:
< 1 dE2000 in less than 5 minutes
Print repeatability:
Average < 0.5 dE2000, 95% of colors < 1.4 dE2000
Maximum optical density (black)
2.5 maximum black optical density (4 L* min) (with HP Premium Instant Dry Photo Gloss media with Original HP inks)

Paper handling


Finished output handling:
  • Sheet feed
  • roll feed
  • media bin
  • automatic cutter (cuts all media except canvas)
Media types:
Photographic, proofing, fine art printing material, self-adhesive, banner and sign, bond and coated, backlit, fabric/textile
Media weights, recommended:
Up to 500 g/m²
Media sizes standard (metric rolls):
  • 210 to 1118-mm wide sheets
  • 279 to 1118-mm rolls
Media sizes, custom:
  • 210 x 279 to 1118 x 1676 mm
Roll external diameter:
135 mm
Media thickness:
Up to 0.8 mm



Connectivity, standard:
  • Gigabit Ethernet (1000Base-T)
  • Hi-Speed USB 2.0
  • EIO Jetdirect accessory slot
Print languages:
Adobe PostScript® 3, Adobe® PDF, TIFF, JPEG, CALS G4, HP PCL 3 GUI, HP-GL/2 (with free HP Instant Printing PRO)

Power and operating requirements


Power consumption:
170 watts maximum (active), < 31 watts (ready), < 12 watts / < 30 watts with embedded Digital Front End (sleep), 0.1 watts (manual-off)
Operating temperature range:
5 to 40ºC
Operating humidity range:
20 to 80% RH

Dimensions and weight


Dimensions (W x D x H)
1770 x 690 x 1047 mm
86 kg

What's included


One-year commercial warranty. Warranty and support options vary by product, country and local legal requirements.
What's in the box:
Printer; printheads; introductory ink cartridges; 1118 cm, (44 in) stand; 1118 cm, (44 in) spindle; Original HP sample media roll; quick reference guide; setup poster; start-up software; poweR
